Designed to meet OSHA and NFPA standards;
1.0 mm thickness high-quality steel sheet with anti-corrosive and moisture-proof coating;
Double-layer steel sheet welded structure, with a 38mm insulation in the middle for fire resistance;

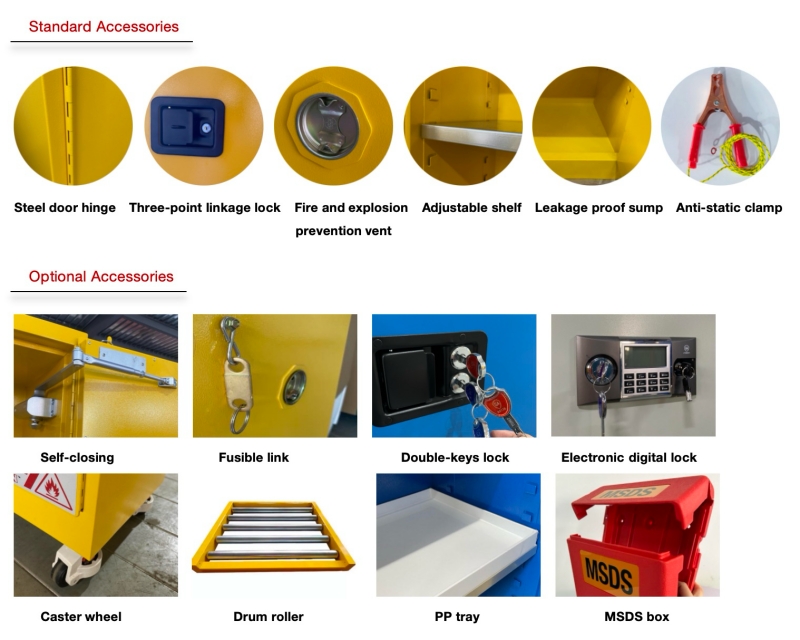

High quality galvanized steel door hinges to reach 180 door-opening;
Three-point door latch makes the door open and close more flexible and stable;
Adjustable galvanized steel shelves and shelf hangers, with leakage-proof function, firm and practical;
Fireproof vent, effectively dilute the concentration of volatile substances to prevent fire hazards;
Industrial standard 5cm bottom sump containment to prevent liquid spillage;
High quality reflective warning label for improving safety of cabinet in a weak-light area;
In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding;
Portable size keeps work areas flexible;
Self-closing door can shut and latch automatically when a fusible link melts at 74oC under fire conditions.
| Model No. (manual door) | TEK610110R |
| Model No. (self-closing door) | TEK610110RS |
| Color | Red |
| Material Specifications | CR Steel sheet |
| Volume (Gal/L) | 110/ 415 |
| Door Type | Double |
| Adjustable Shelves(pcs) | 2 |
| Shelf Loading Weight(Kgs) | 100 |
| Ext. Dimension (HxWxD/mm) | 1650x1500x860 |
| Packing Dimension (HxWxD/mm) | 1790x1570x930 |
| Net Weight(Kgs) | 175 |
| Gross Weight (Kgs) | 216 |

| Model No. (manual door) | TEK610110R |
| Model No. (self-closing door) | TEK610110RS |
| Color | Red |
| Material Specifications | CR Steel sheet |
| Volume (Gal/L) | 110/ 415 |
| Door Type | Double |
| Adjustable Shelves(pcs) | 2 |
| Shelf Loading Weight(Kgs) | 100 |
| Ext. Dimension (HxWxD/mm) | 1650x1500x860 |
| Packing Dimension (HxWxD/mm) | 1790x1570x930 |
| Net Weight(Kgs) | 175 |
| Gross Weight (Kgs) | 216 |
