Cabinet: 1.0mm cold-rolled steel plate, double-layer structure.
Cabinet door: 1.0mm cold-rolled steel plate, double-layer structure, with black zinc alloy handle.
Laminate: 1.2mm galvanized laminate with open hole design for ventilation and heat dissipation; bottom with PP anti-leakage tray to prevent leakage of lithium battery liquid.
Hinge: piano-type hinge smoothly closed, easy to open and close 180 degrees.
Casters: four wheels at the bottom, with adjustable amplitude for convenient movement and smooth support, to ensure cabinets are sited at ground floor-level.
Leakage groove: 50mm high anti-leakage groove makes the accidental flow of liquid does not spill.

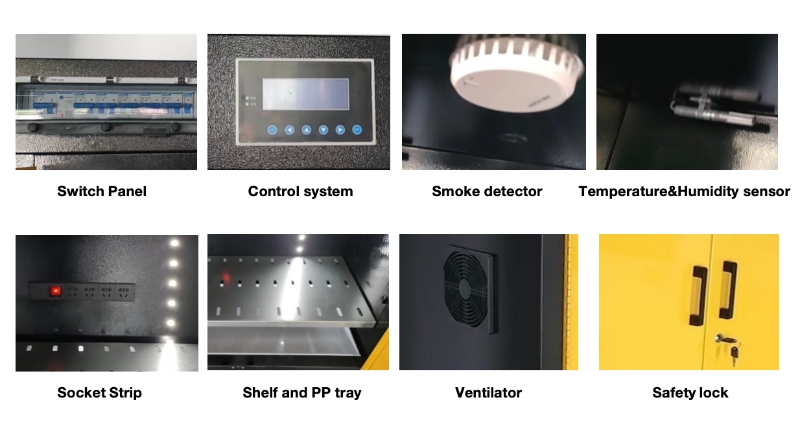

Lighting: LED soft light lighting by micro switch.
Charging Module: Customized Power Distribution socket strips with overload protection.
Temperature and humidity alarm system, with Separate smoke detector.
Equipped with 2 groups of heat dissipation fans, natural ventilation and time-controlled mechanical ventilation combined to achieve efficient ventilation cycle.
Fire extinguishing is triggered automatically in the event of a fire.
|
Model No. (manual door) |
TEK661800 |
|
Model No. (self-closing door) |
TEK661800S |
|
Color |
Yellow and black |
|
Material Specifications |
Cold rolled steel sheet with epoxy resin electrostatic coated |
|
Door Type |
Double doors, Manual/ Self-closing |
|
Locking Type |
Safety lock |
|
Adjustable Shelves(pcs) |
4 pcs of adjustable shelves (with bottom PP anti-leakage tray) |
|
Socket Unit |
4*4pcs |
|
Casters |
4pcs of Forma wheels |
|
Ext. Dimension (HxWxD/mm) |
H1800xW900xD510 |
|
Internal Dimension (HxWxD/mm) |
H1470xW790xD380 |
|
Net Weight(Kgs) |
150 |
