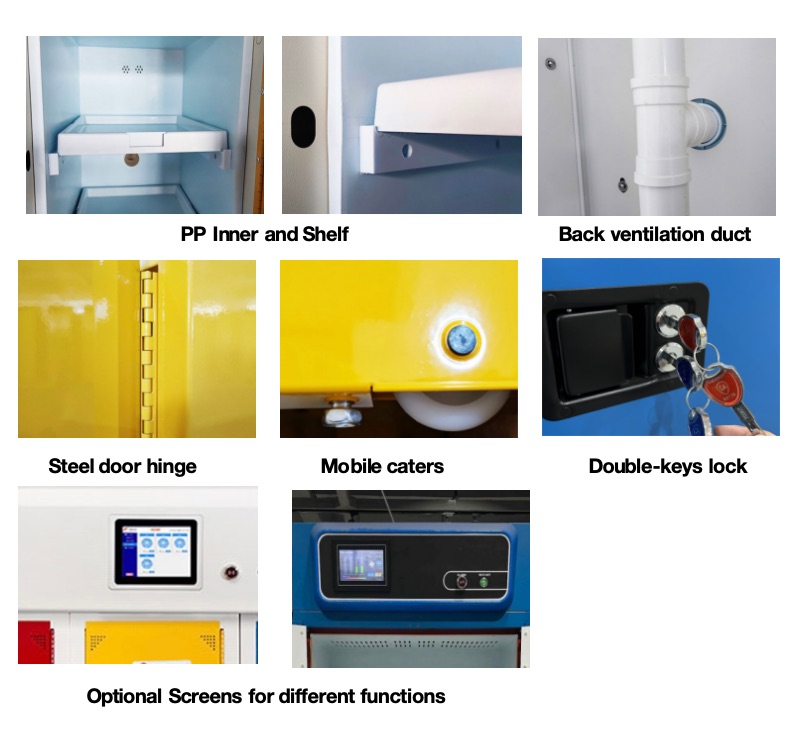

 Cabinet is a double-layer outer steel and inner PP structure, which complies safety regulations.

 Epoxy resin powder coating treatment, bright surface, dust-proof, rust-proof and moisture-proof.

 Three-point double lock structure reduces friction or mechanical sparks and reduces static electricity accumulation;

 Leakage proof PP tray for preventing the risk of reagent slipping and tipping.

 Equipped with a detachable base and casters for easy movement.

 Cabinet door color available in yellow, red, blue, and white.

 Grounding device reserved, to reduce the risk of fire caused by static sparks.

 Structures for installation ventilation, filtration, purification and locking system reserved, making it easy for product upgrading and management in future.



Model No.  TEK670101 TEK670201 STEK670202
Material Specifications Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure
Lock Three-point double lock x 1set Three-point double lock x 2sets Three-point double lock x 4sets
Adjustable Shelves PP Panel x 1 pc PP Panel x 2 pcs PP Panel x 4 pcs
Ext. Dimension (HxWxD/mm) H630xW430xD570 H1190xW430xD570 H1510xW860xD570
Shelf Dimension (HxWxD/mm) H50xW300xD330 H50xW300xD330 H50xW300xD330
Capacity 500ml Reagent Bottle x 18pcs 500ml Reagent Bottle x36pcs 500ml Reagent Bottle x36pcs



Model No.  TEK670101 TEK670201 STEK670202
Material Specifications Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure
Lock Three-point double lock x 1set Three-point double lock x 2sets Three-point double lock x 4sets
Adjustable Shelves PP Panel x 1 pc PP Panel x 2 pcs PP Panel x 4 pcs
Ext. Dimension (HxWxD/mm) H630xW430xD570 H1190xW430xD570 H1510xW860xD570
Shelf Dimension (HxWxD/mm) H50xW300xD330 H50xW300xD330 H50xW300xD330
Capacity 500ml Reagent Bottle x 18pcs 500ml Reagent Bottle x36pcs 500ml Reagent Bottle x36pcs
