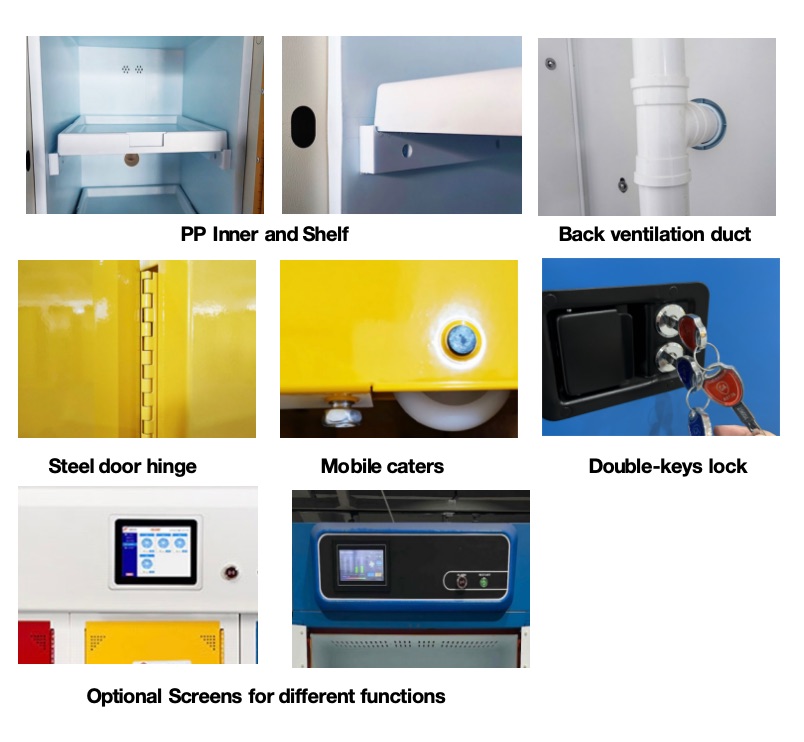

 Cabinet is a double-layer outer steel and inner PP strucutre, which complies safety regulations.

 Epoxy resin powder coating treatment, bright surface, dust-proof, rust-proof and moisture-proof.

 Three-point double lock structure reduces friction or mechanical sparks and reduces static electricity accumulation.

 Leakage proof PP tray for preventing the risk of reagent slipping and tipping.

 Equipped with a detachable base and casters for easy movement.

 Cabinet door color available in yellow, red, blue, and white.

 Grounding device reserved, to reduce the risk of fire caused by static sparks.

 Equipped with intelligent system for ventilation, filtration, purification, locking and monitoring, making it safe and effective storage management of hazardous chemicals by technology.



Model No.  STEK670202 STEK670303 STEK670304
Material Specifications Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure
Lock Three-point double lock x 4sets Three-point double lock x 9sets Three-point double lock x 12sets
Adjustable Shelves PP Panel x 4 pcs PP Panel x 9 pcs PP Panel x 12 pcs
Ext. Dimension (HxWxD/mm) H1510xW860xD570 H2070xW1290xD570 H2070xW1720xD570
Shelf Dimension (HxWxD/mm) H50xW300xD330 H50xW300xD330 H50xW300xD330
Capacity 500ml Reagent Bottle x72pcs 500ml Reagent Bottle x162pcs 500ml Reagent Bottle x216pcs
Controlling System VOC & Temperature& Humidity alarming system VOC & Temperature& Humidity alarming system VOC & Temperature& Humidity alarming system
Exhaust fan Centrifugal fan x2pcs Centrifugal fan x3pcs Centrifugal fan x4pcs
Display Screen 8.4 inches LCD 8.4 inches LCD 8.4 inches LCD
Filters 2 groups 3 groups 4 groups


Model No.  STEK670202 STEK670303 STEK670304
Material Specifications Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure Double-layer, outer steel and inner PP structure
Lock Three-point double lock x 4sets Three-point double lock x 9sets Three-point double lock x 12sets
Adjustable Shelves PP Panel x 4 pcs PP Panel x 9 pcs PP Panel x 12 pcs
Ext. Dimension (HxWxD/mm) H1510xW860xD570 H2070xW1290xD570 H2070xW1720xD570
Shelf Dimension (HxWxD/mm) H50xW300xD330 H50xW300xD330 H50xW300xD330
Capacity 500ml Reagent Bottle x72pcs 500ml Reagent Bottle x162pcs 500ml Reagent Bottle x216pcs
Controlling System VOC & Temperature& Humidity alarming system VOC & Temperature& Humidity alarming system VOC & Temperature& Humidity alarming system
Exhaust fan Centrifugal fan x2pcs Centrifugal fan x3pcs Centrifugal fan x4pcs
Display Screen 8.4 inches LCD 8.4 inches LCD 8.4 inches LCD
Filters 2 groups 3 groups 4 groups
