 Designed to meet OSHA and NFPA standards;

1.0 mm thickness high-quality steel sheet with anti-corrosive and moisture-proof coating;
Double-layer steel sheet welded structure, with a 38mm insulation in the middle for fire resistance;

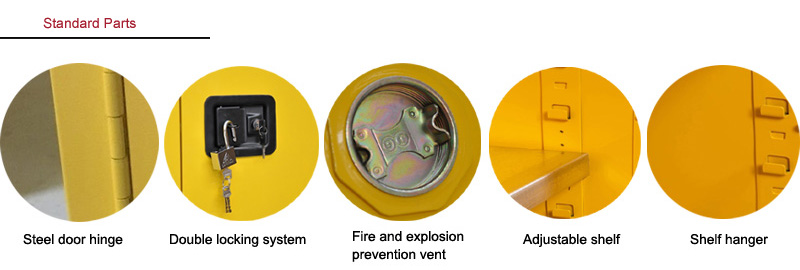

High quality galvanized steel door hinges to reach 180 door-opening;
Three-point door latch makes the door open and close more flexible and stable;
Adjustable galvanized steel shelves and shelf hangers, with leakage-proof function, firm and practical;
Fireproof vent, effectively dilute the concentration of volatile substances to prevent fire hazards;
Industrial standard 5cm bottom sump containment to prevent liquid spillage;
High quality reflective warning label for improving safety of cabinet in a weak-light area;
In terms of OSHA, on outside side panel, there is built-in grounding static connector for easy grounding;
Portable size keeps work areas flexible;

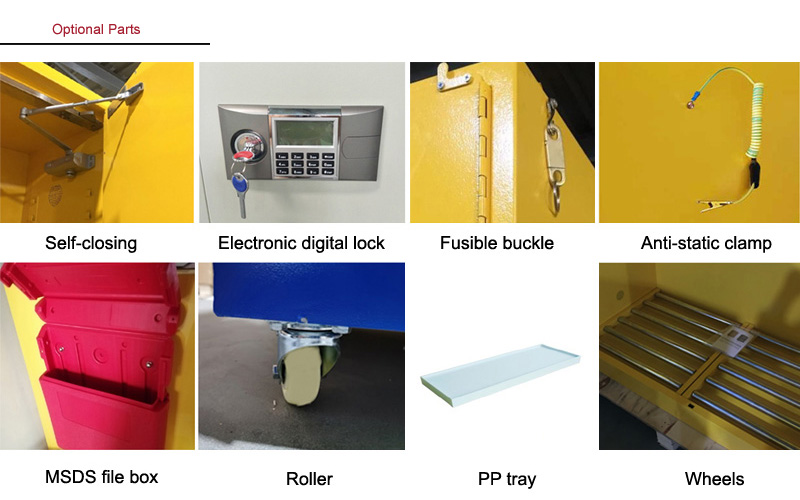

Self-closing door can shut and latch automatically when a fusible link melts at 74oC under fire conditions.


Model No. (manual door) TEK610022
Model No. (self-closing door) TEK610022S
Color Yellow
Material Specifications 18-Gauge CR Steel
Volume  (Gal/L) 22/ 83
Door Type Single
Adjustable Shelves(pcs) 2
Shelf Loading Weight(Kgs) 50
Ext. Dimension (HxWxD/mm) 1650x590x460
Packing Dimension (HxWxD/mm) 1790x660x530
Net Weight(Kgs) 65
Gross Weight (Kgs) 81





Model No. (manual door) TEK610022
Model No. (self-closing door) TEK610022S
Color Yellow
Material Specifications 18-Gauge CR Steel
Volume  (Gal/L) 22/ 83
Door Type Single
Adjustable Shelves(pcs) 2
Shelf Loading Weight(Kgs) 50
Ext. Dimension (HxWxD/mm) 1650x590x460
Packing Dimension (HxWxD/mm) 1790x660x530
Net Weight(Kgs) 65
Gross Weight (Kgs) 81
