Using the materials of Stainless Steel 304, with good acid proof ,alkali prevention performance, ideal for harsh environment;
It can be covered with high-brightness epoxy resin surface coating which is strong anti-corrosion;

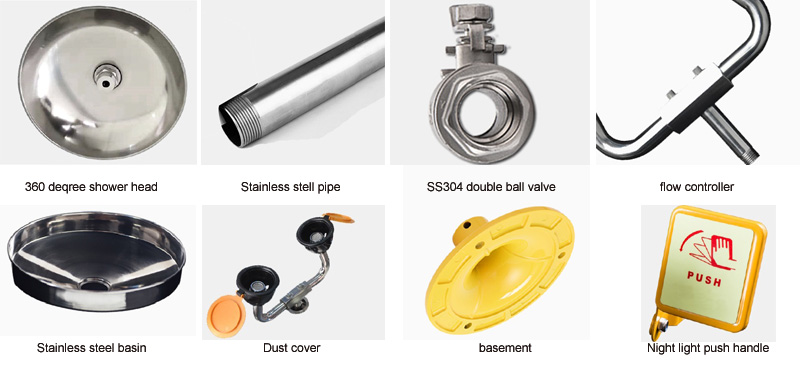

Twin spray nozzles protected by dust covers opened when eye wash is activated;
The shower head delivers a large volume flushing fluid spread evenly in a precise pattern and controlled flow rate;
The qualified precision manufacturing of connection like ball valve, spiral sealing ensure fast flushing eyes and face splashed by chemical liquid in emergency;
Customized size of inlet and outlet part and colors;
Meets ANSI and EN standards and supports OSHA requirements.


Model No. TEK818101
Color

Silver/ Yellow/ Green

Main Material and surface treatment Stainless Steel
Eye/Face Wash Flow Rate  (L/min) 12-18
Shower Flow Rate (L/mim) 120-180
Start Speed (S) 1
Inlet& Outlet DN32
Water Pressure (Mpa) 0.25-0.4
Outer Dimension Height (mm) 2490
Packing Size (HxWxD/mm) 750x300x250
Net Weight (Kgs) 13
Gross Weight (Kgs) 14




Model No. TEK818101
Color

Silver/ Yellow/ Green

Main Material and surface treatment Stainless Steel
Eye/Face Wash Flow Rate  (L/min) 12-18
Shower Flow Rate (L/mim) 120-180
Start Speed (S) 1
Inlet& Outlet DN32
Water Pressure (Mpa) 0.25-0.4
Outer Dimension Height (mm) 2490
Packing Size (HxWxD/mm) 750x300x250
Net Weight (Kgs) 13
Gross Weight (Kgs) 14
